Datos del producto:
|
| Válvula de tensión: | 48/60/72 V | En la actualidad: | 10A/15A/20A puede cliente hizo |
|---|---|---|---|
| Solo poder de la ranura: | 750W/1200W/1500W | Tipo de la batería de litio: | NCM y LFP |
| El software: | - ¿ Qué? | ||
| Resaltar: | Battery Smart Swap Station 60V 40Ah,NCM Battery Smart Swap Station,Ev Battery Exchange Station 60V 40Ah |
||
60V40Ah Waterproof Power Swap Station Fast Charging Electric 3 Wheeler For Motorcycle
Lithium Battery Swapping Station
Make your electric vehicle can drive unlimited range, anytime and anywhere
It was developed and promoted by the brand "Charging Store" after 3 years research and test.
Provide convenience for people who often use electric vehicles in daily life.
So far, more than 1,000 Chinese merchants are using our battery swapping cabinets
And more than 10,000 registered user swap the battery with our cabinets
The Software and hardware of the whole swapping cabinet were design and produced by “Charging Store”
The battery swapping cabinet has a battery inspection function
Battery monitoring function
Independent operation function
Remote operation function
Also automatic power-off protection function
Now we have three types of cabinets: 4 cabins, 8 cabins and 12 cabins
The swapping station can adjust the data to correspond to different types of batteries

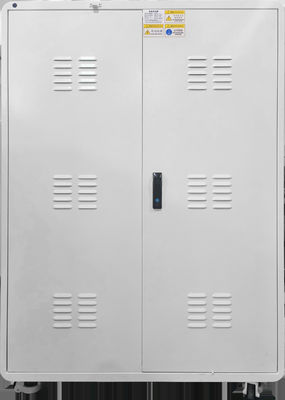

Real take pic for your refer for more details for the swapping stations
| Specification | Parameters |
| Cabinet size | 750(W)*540(L)*1800(H)mm |
| Maximum size in port | 260(W) *420(L) *200(H)mm |
| Number of battery ports | 12 ports (individual control) |
| Battery communication | RS485,CAN |
| Touch display | Standard, 7 inches |
| Input voltage | 100~240VAC 50HZ |
| Maximum input power | 9200W/6500W(optional) |
| Single port maximum charging power | 900W/1200W(optional) |
| Charge Voltage Platform | 72V/60V/48V |
| Working environment | Altitude≤3000m,0~55℃, |
| Dynamic Power Adjustment | Standard configuration, dynamically output charging power according to charging strategy |
| Speaker | Standard (built-in) |
| Protection performance | Lightning protection / dustproof and waterproof IP54 / water immersion power-off protection |
| Battery Health Check | Standard configuration, cabinet inspection |
| High temperature detection | Standard, background warning function |
| Remote monitoring | Support (need to cooperate with management background, remote diagnosis/cabinet control) |
| Indicator light | Standard (Three Colors) |
| Communication | Standard 4G/BT, optional GPS/WIFI |
| Swapping method | Scan code to swap battery/reservation to swap battery/offline battery swap |
| Camera | Camera (outlay,optional) |
| Fire extinguisher | S-type aerosol |
| Fall prevention block | Optional (X4) |
| Certification requirements | Can be arranged according to market demand (consider certification fee & cycle) |
| Appearance | Can be customized according to customer needs |
How to rent the battery
Step 1 scan the QR code
Step 2 put back the used battery
Step 3 take out the new battery and put into your scooter
