Datos del producto:
|
| Exactitud: | ± 0,5% | Rango de corriente: | 0-100A |
|---|---|---|---|
| Salida de datos: | El USB | Almacenamiento de datos: | 1000 grupos |
| Las dimensiones: | 200 mm*130 mm*80 mm | Pantalla: | Display de pantalla |
| Interfaz: | Se trata de un sistema de seguridad. | Humedad de funcionamiento: | ≤85%RH |
| Temperatura de funcionamiento: | -20°C a 60°C | Fuente de alimentación: | Las emisiones de gases de efecto invernadero y los gases de efecto invernadero |
| Nombre del producto: | Probador de la descarga de la batería de litio | Protección: | La tensión de sobreposición/corrente de sobreposición/cortocircuito/polaridad inversa |
| Resolución: | 1mV/1mA | Rango de tensión: | 0-60V |
| Peso: | 1.2 kg |

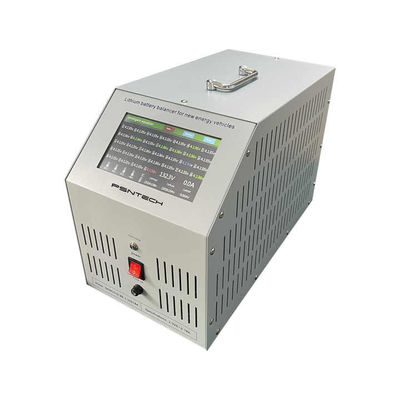

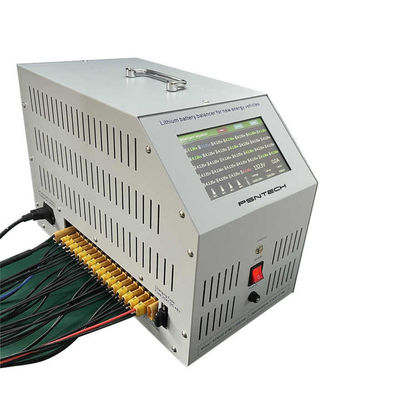

3-32S 18A big current electric vehicle lithium battery voltage difference
balance Lithium battery equalizer tester
Lithium Battery Balancer for Electric Vehicles
This equipment is energy-consuming balance(passive balance), which is to balance the
discharge method of single cells.Due to the differences in the battery cells, the cell voltage
rises at different speeds during the series charging process.The cells with high voltage are
charged first, which triggers the over voltage protection of the BMS system. Therefore,
the cellswith low voltage cannot be fully charged. During the discharging process, the cells
with low voltage are discharged first.The vicious circle causes the voltage difference to
become larger and larger, which causes the capacity of the battery pack todecrease, resulting
in a severe reduction in the cruising range.Therefore, it is necessary to repair the voltage
difference of the battery pack to restore the current maximum capacity.Guarantee the
performance and life of the lithium battery pack.
Model: PSN-24S18A / HY-32S18A
Channel or Series: 24 / 32.
AC Input: 100～240V±15% 50/60Hz.
Application: NCM,LMO,LFP.
Working voltage: 1～4.3V. When the cell voltage is equal to or higher than 4.9V, it will display 4.9V and the
charging and discharging status bar will display "Wired off.
|
Item
|
Data
|
|||
|
1
|
Device name
|
Battery voltage balancer
|
||
|
2
|
Application
|
LITHIUM BATTERY(NCM/LFP/LTO)
|
||
|
3
|
Function
|
Voltage balance
|
||
|
4
|
Work voltage
|
2-136V
|
||
|
5
|
Work current
|
0.1-18A adjustable
|
||
|
6
|
Size
|
440*233*320 mm
|
||
|
7
|
Weight
|
12KGS
|
||
|
8
|
Packing list
|
x 1 equalizer, x 1 AC power cable, x 1 set of equalization cable
|
||
As per your real battery ,set well the right value you need. First of all set well you battery series no. first.
then go on others
